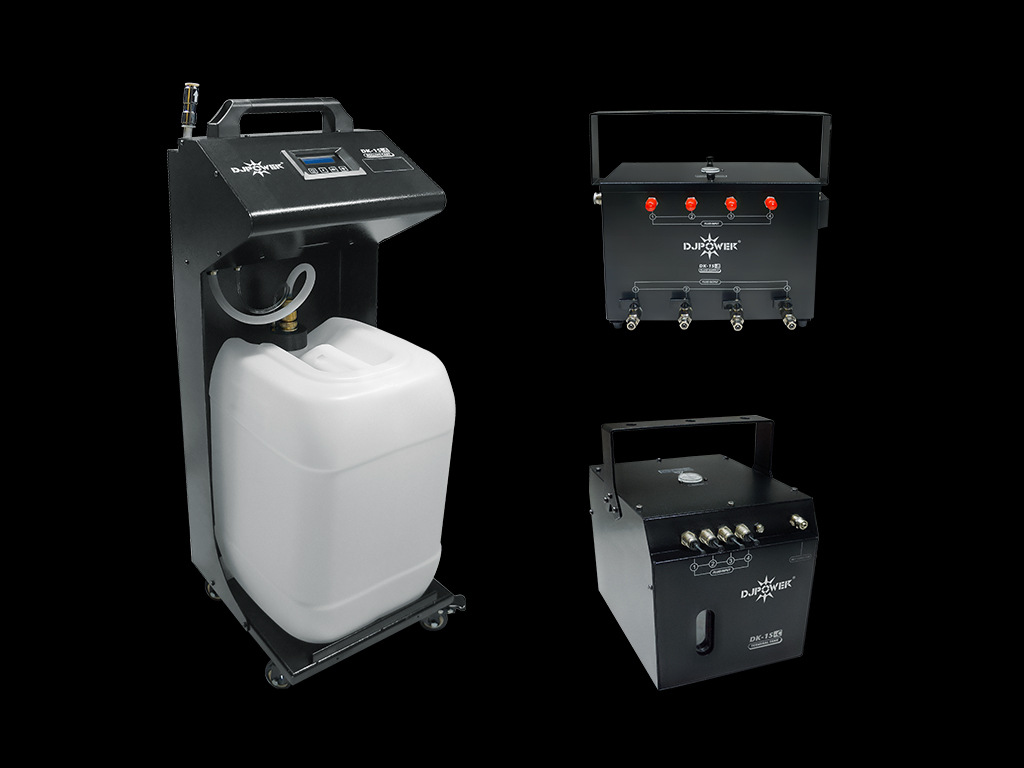

DK-1S

LIQUID SUPPLY SYSTEM

The DK-1S Liquid Supply System is an upgraded version of the DK-1. It is a newly launched product which provides solution for refilling liquids to fog/haze/snow/bubble machines in case the units are mounted high, completely ease the inconvenience of aloft work. It is easy to install, and can supply liquid for maximum 8 units at a time. The product adopts the patented technology of depressurization and reflux, which is easy to install and use. No more taking risks, climbing up and down to fuel the machine!

Features

  • With LCD control panel, easy operation.
  • With No-fluid protection.
  • With 25 L liquid tank, Large storage capacity.
  • The maximum conveying height is about 25 meters，and the maximum conveying horizontal distance is about 40 meters.
  • With LED lights for checking the liquid amount.

Specifications

AC Power

  • Input Voltage & Rate:AC 220-240 V, 50/60 Hz
  • Current Limiter Type: Breaker
  • Current Limiter Specifications: 5 A, 250 V
  • Total Power Consumption: 40 W
  • Power Input Connector: Lockable PowerCon
  • Power Output Connector (Daisy Chained): Lockable PowerCon

CAPACITY

  • Fluid Tank Capacity : 25 L

Output

  • Max. Vertical Distance: Appr. 25 m
  • Max. Horizontal Distance: Appr. 35 m

Features

  • Physical Thermostat: ×
  • Electronic Thermo-Control: ×
  • No-Fluid Protection: √

Control

  • On-device Manual Control : LCD control board
  • Wireless Control: ×
  • Wired Control: ×
  • Control Protocol: DMX-512

Accessory

  • Power Cord: √

Consumable

  • Consumable: PRO-A/C/J/V/D/P/X

Weight & Dimensions

  • Rolling Cart Net Weight: 15.5 kg
  • Rolling Cart Gross Weight: 18 kg
  • Transfer Fluid Tank Net Weight: 5.7 kg
  • Transfer Fluid Tank Gross Weight: 7.2 kg
  • Terminal Liquid Tank Net Weight：7.2 kg
  • Terminal Liquid Tank Gross Weight：8.7 kg
  • Rolling Cart Size: 305 × 326 × 886 mm
  • Rolling Cart Packing Dimensions: 1015 × 445 × 405 mm
  • Transfer Fluid Tank Size: 400 × 277 × 356 mm
  • Transfer Fluid Tank Packing Dimensions: 515 × 315 × 430 mm
  • Terminal Liquid Tank Size：227 × 265 × 322 mm
  • Terminal Liquid Tank Package Size: 360 × 315 × 400 mm
