< Back

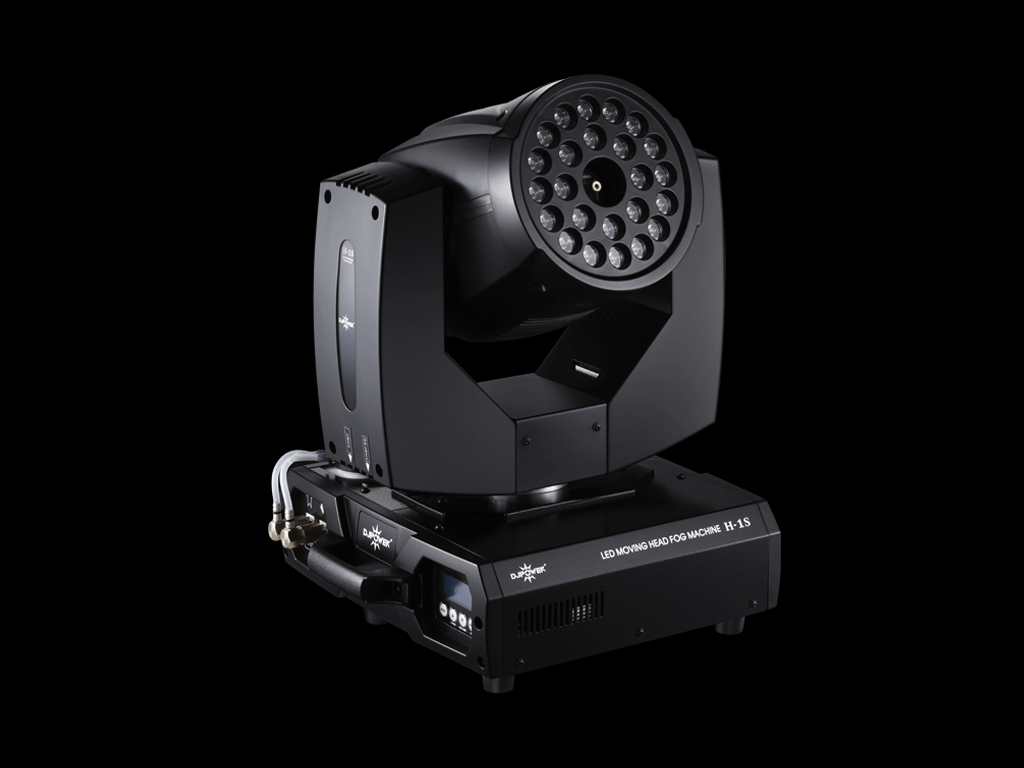

H-1S

LED MOVING HEAD FOG MACHINE (discontinued)

Upgraded version of H-1S moving head fog machine, with optional small controller box, it features 24 pcs of 5W RGBA LED lights, rapid movement, various color changes, strobe, sound activated model, adjustable fog output, Immediate-Stop and Anti-Squirting Plus technology. The yoke has a 540-degree pan and the head has a 270-degree tilt. Since the size of heater bigger than the predecessor, the fog output stronger. LED lights increase 50% brightness, which can work individually or together with fog. Super strong fog output is sensational. Intensive multi-color LED lights are dazzling. Rotating moving head is thrilling. It delivers all three. With newest “Anti-Squirting Plus” technology, it is safer no matter hung or placed on the floor. It is suitable for high-end bars and stages.

Features

  • All in one: Fog / LED Lights / Moveable Head;
  • 24 pcs of 5W RGBA LED lights, various color changes and strobe; the bright increases 50% more than the predecessor;
  • Rapid Movement, Full 540° pan rotation in approximately 2 seconds, complete 270° tilt range in about ? second;
  • Adjustable fog output, fog output continues from 8 seconds to 15 seconds by using a larger heater;
  • Upgraded structure, using metal quick connector, more safe and convenient;
  • “Immediate-Stop “and Anti-Squirting Plus patented technology;
  • Advanced NO-Fluid protection
  • Unique Temperature Control System;
  • Anti-loose power plug;
  • Quick Connector;
  • Built-in LCD control, wireless control, and 3pin, 5pin DMX control;
  • Hung or Placed on floor;
  • Please use DJPOWER professional fog fluid PRO-A or PRO-V;

In addition, the moving head fog machine is equipped with a new and small controller box, which can be bought separately. The controller box enables the machine work automatically without DMX console! Such as when four machines daisy chained, the machines can work the programs you choose from the control box automatically.

Specifications

AC Power

  • Input Voltage & Rate: 220-240 V, 50/60 Hz
  • Current Limiter Type: Breaker
  • Current Limiter Specifications: 8 A, 250 V
  • Total Power Consumption: 1,500 W
  • Operating Current: 6.5 A
  • Power Input Connector: Lockable PowerCon

Heating

  • Heat Up Time: Appr. 4.5 min
  • Heater Type: Aluminum Heater Block

Light Source

  • LED Color: RGBA
  • LED Type: Single Color
  • Power per LED: 5 W
  • Quantity of LED: 24 pcs
  • Quantity of RED: 6 pcs
  • Quantity of GREEN: 6 pcs
  • Quantity of BLUE: 6 pcs
  • Quantity of AMBER: 6 pcs
  • Total Power of LED: 120 W

Capacity

  • Fluid Tank Capacity : 1.3 L / 0.3 Gal.

Output

  • Max Output Volume: Appr. 20,000 cuft/min
  • Max Output Distance : Appr. 6.0~8.0 m
  • Fluid Consumption @ full volume : Appr. 100.0 mL/min
  • Maximum Continuous Duration @ full volume: Appr. 15 sec
  • Fully-loaded Cumulative Output Duration @ full volume: Appr. 13 min
  • Consumable Type for Standard Output Test: PRO-V

Features

  • Physical Thermostat: √
  • Electronic Thermo-Control: √
  • Adjustable Output : √
  • No-Fluid Protection: √
  • Instant-Stop: √

Control

  • On-device Manual Control : LCD control board
  • Wireless Control: W-4 / RF 433MHz / Built-in
  • Wired Control: ×
  • Control Protocol: DMX-512
  • DMX Channel Range: 10
  • Data Connectors: 3- and 5-pin XLR

Accessory

  • Power Cord: √
  • Wireless Controller Model: W-4 / RF 433MHz / Transmitter

Consumable

  • Consumable: PRO-A or PRO-V Fog Fluid

Weight & Dimensions

  • Net Weight: 19 kg / 41.9 lb.
  • Gross Weight: 22 kg / 48.5 lb.
  • Machine Dimensions: 403 × 355 × 477 mm / 15.9 × 14 × 18.8 in.
  • Packing Dimensions: 455 × 415 × 555 mm / 17.9 × 16.3 × 21.9 in.
